Some of you may say “a concept, huh? why??? just build it” but no thats not me. I want to build a variant of the ship which is the maximum possible.

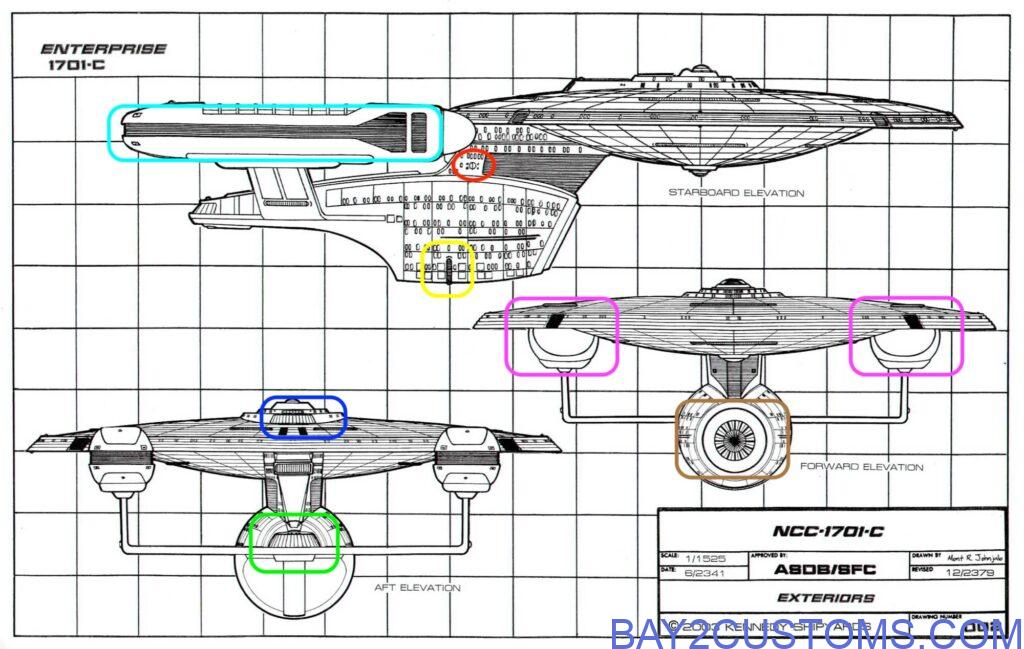

On the right side i marked areas with several colors.
1. TURQOUISE – The warp nacelles for sure! over the full length, should be an LED stripe with Nano-pixels
2. BLUE – backwards beyond and behind the bridge is a shuttle bay. The door should be servo controlled and a fully equipped shuttle bay should be visible.
3.Pink – Bussard Ramjets needs 3 nanopixel and they should fluctuate lightwise..
4. BROWN – Sensor aray – 10 nanopixel
5. GREEN – Backdoor shuttlebay – servo controlled
6. YELLOW – fully functional
7. RED – thats the possibility where the ship can dock with an external Pod, like you have seen in the first Star Trek Movie. Here I wanna conect the ship with a display stand.
8 not marked – the Saucers Phaser Array. all should be functional. Additional al major windows should be light equipped
8 Arduino controlled
